An electric generator is a device designed to produce electricity from another form of energy, usually mechanical. It is also known as a generator set. Its operation is based on the principle of electromagnetic induction, discovered by Michael Faraday, creator of the first electromagnetic generator, the Faraday disk. This principle states that the voltage induced in a conductor is proportional to the change of magnetic flux through it.
Knowing how a generator works and the different types available allows you to select the most suitable option for the home, industry or special applications.
How does an electric generator work?
The principle of operation of an electric generator is simple: it transforms mechanical energy into electrical energy through electromagnetic induction. Although industrial generators are complex, their basic structure consists of:
- Rotor: coils of conductive wire that rotate.
- Stator: Fixed magnets that create a magnetic field.
- Turbine or mechanical power source: provides the movement needed to rotate the rotor.
When the rotor rotates within the magnetic field, an electric current is generated whose intensity depends on the orientation of the coil with respect to the field:
- Perpendicular → maximum current.
- Oblique → minor current.
- Parallel → zero current.
This motion produces alternating current (AC), whose waveform is sinusoidal. In industrial alternators, the coils are connected to generate three-phase current, used in homes and businesses.
The transformer allows the AC output voltage to be adjusted with minimal energy losses.
Similarity to an electric motor
A generator works in reverse to an electric motor. While in a motor the current turns the rotor, in a generator mechanical energy is applied to induce current in the circuit.
To visualize it, imagine a coil spinning within a magnetic field: the rotation generates a flow of current that changes direction continuously, producing alternating current.
Types of Electric Generators
Electric generators can be classified according to installation, motor, type of current, start, and power source. This classification allows you to select the most suitable generator for each application.
Depending on the installation
The location and frequency of use determine whether a generator should be portable or stationary. Knowing these differences helps to choose an efficient and safe model:
- Portable: Lightweight and easy to carry, ideal for leisure, emergencies, or temporary jobs.
- Stationary: installed in special rooms, they operate continuously or as a backup in the event of power outages.
Depending on the engine or fuel
The engine type defines the performance, power, and fuel of the generator, which affects its efficiency and emissions:
- 2-stroke generator: small, compact and simple.
- 4-stroke generator: runs on petrol, produces fewer emissions and allows for higher power.
- Diesel generator: high performance, durable and efficient.
- Gas generators (LPG, butane, propane): they generate fewer polluting emissions.
Depending on the type of current
The type of electrical current determines the application of the generator, whether for domestic or industrial use:
- Single-phase generator: 230 V output, ideal for domestic consumption.
- Three-phase generator: 400 V output, for industrial or commercial loads.
- Direct current generator (12 V): used in conjunction with alternating current in hybrid systems.
With special starting systems
The starting system affects the ease of operation and maintenance of the generator:
- Manual start: typical of small portable UPSs.
- Electric or automatic start: includes starter motor and battery, with electronic control that allows the generator to be automatically started when a power cut is detected.
Quiet
For noise-sensitive environments, there are generators designed to minimize vibration and noise emissions:
- Generators equipped with soundproofing systems, ideal for residential areas or work environments where silence is necessary.
Generators that do not require mechanical power
Some generators produce electricity without the need for mechanical movement, using physical or chemical phenomena:

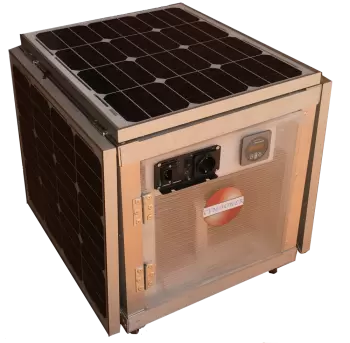

- Photovoltaics: solar panels that generate electricity through the photovoltaic effect.
- Electrochemical: batteries and fuel cells that produce current by chemical reactions.
- Radioisotopes: generate electricity from radioactive decay.
- Differential thermals: they take advantage of temperature differences through the Seebeck effect.
Conclusion
An electric generator is essential for converting mechanical, solar, chemical, or thermal energy into electricity. Knowing its operating principle and the different types allows you to choose the most suitable generator, from portable models to three-phase industrial installations.
Investing in an efficient generator guarantees a safe, stable electricity supply adapted to your needs, optimising energy production and consumption.
